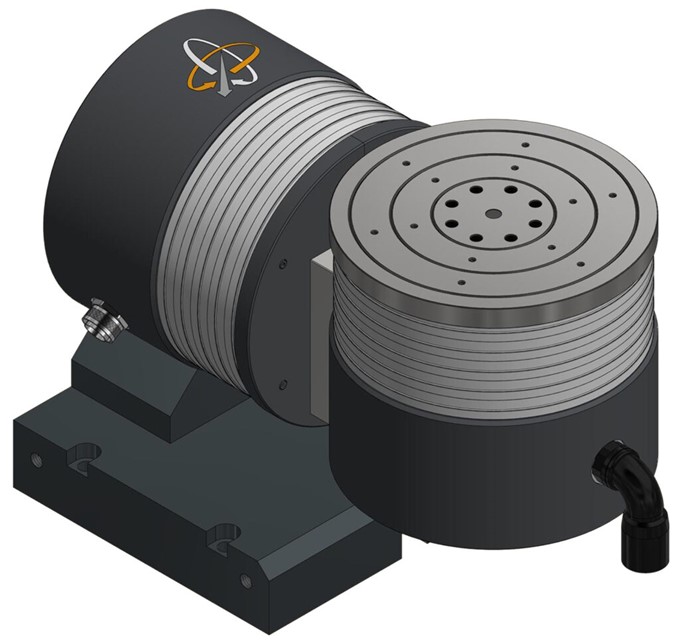

QuadProfileDUO
QuadProfileDUO is a dual-axis rotary table designed to increase the flexibility and efficiency of your coordinate measuring machine.
Dual-axis rotary table for advanced CMM inspection and meets the requirements of ISO 10360 Part 3.
Inspection of complex parts
QuadProfileDUO is a dual-axis rotary table developed for coordinate measuring machines (CMMs) where advanced inspection of complex parts is required. The system is particularly well suited for, for example, rotor blades and blisks, where parts need to be measured from multiple angles to ensure correct geometry.
Two axes for increased measurement flexibility
With both rotary and tilt axes, the workpiece can be positioned precisely to provide full access to all measurement points. This flexibility enables the component to be inspected more efficiently and reduces the need for repositioning during the measurement process.
Stable and precise measurement
QuadProfileDUO features a backlash-free drive system that ensures smooth rotation and high repeatability. With a table top of Ø200 mm, rotational speed up to 10 rpm and load capacity up to 5 kg or 5 Nm, the system is designed for smaller but geometrically advanced components. The angular accuracy of 2 and 5 arcseconds makes the table well suited for precise CMM metrology.
- Size Ø200 mm
- Two axes
- Load capacity up to 5 kg or 5 Nm
- Rotational speed 10 rpm
- Backlash-free drive
- Angular accuracy 2 and 5 arcseconds
| QuadProfileDUO | |||
|---|---|---|---|
| Technical Data | QD | Units | QuadProfileDUO |
| Traverse Range - Tilt Axis | Degree * | +/-120 | |
| Traverse Range - Rotary Axis | 360 | ||
| Load Capacity | kg | 5 | |
| Maximum Load Moment | Nm | 5 | |
| Maximum Polar Inertia | kgm² | 0.25 | |
| Maximum Rotation Speed | rpm | 10 (20% duty cycle) | |
| Maximum Acceleration@ maximum inertia | rads/s² | 2 | |
| Angular Positioning Accuracy – Tilt Axis | Arc Seconds * | 2 | |
| Angular Positioning Accuracy – Rotary Axis | 20 | ||
| Angular Resolution (Options Available) | 12-56 | 0.36 (x400) | |
| Angular Repeatability | 12-57 | +/-0.5 | |
| Rotation Error | 12-06 | mm | 0.005 |
| Flatness of Table Top | 12-07 | ||
| Parallelism of Table Top To Base | 12-08 | 0.010 | |
| Radial Runout | 12-10 | 0.001 | |
| Axial Runout | 12-11 | mm | |
| Coning of Axis | 12-35 | Arc seconds* | +/-1 |
| Squareness of Spindle Face | 12-37 | mm | 0.010 |
| Overall Weight | kg | 75 | |
Calibrations follow RPI's QD12-100 Calibration Notation and Procedures and conform to ISO230-1, 2, 7
