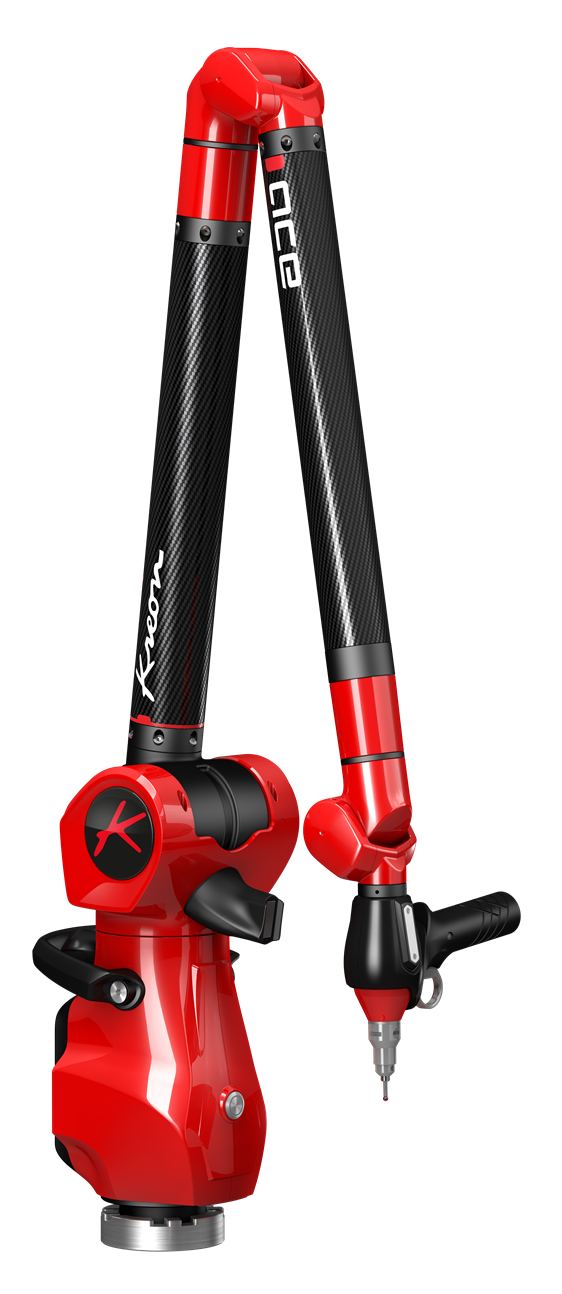

Kreon Ace Arm
Kreon Ace is a portable measuring arm that flexibly solves inspection and quality control of industrially manufactured components, regardless of shape,...
- Ergonomic Stability
- User-Friendly
- A Portable Measuring Instrument

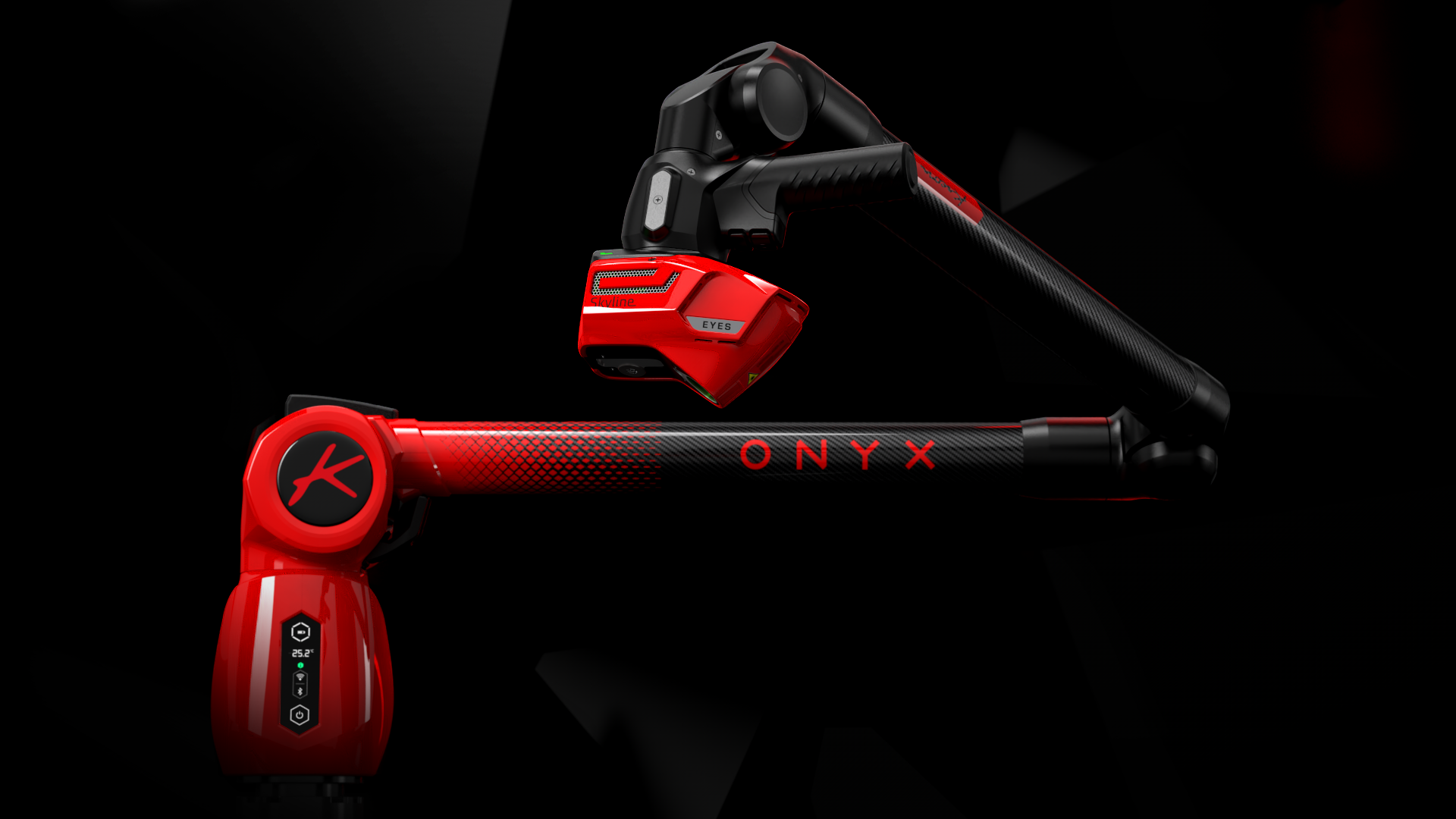

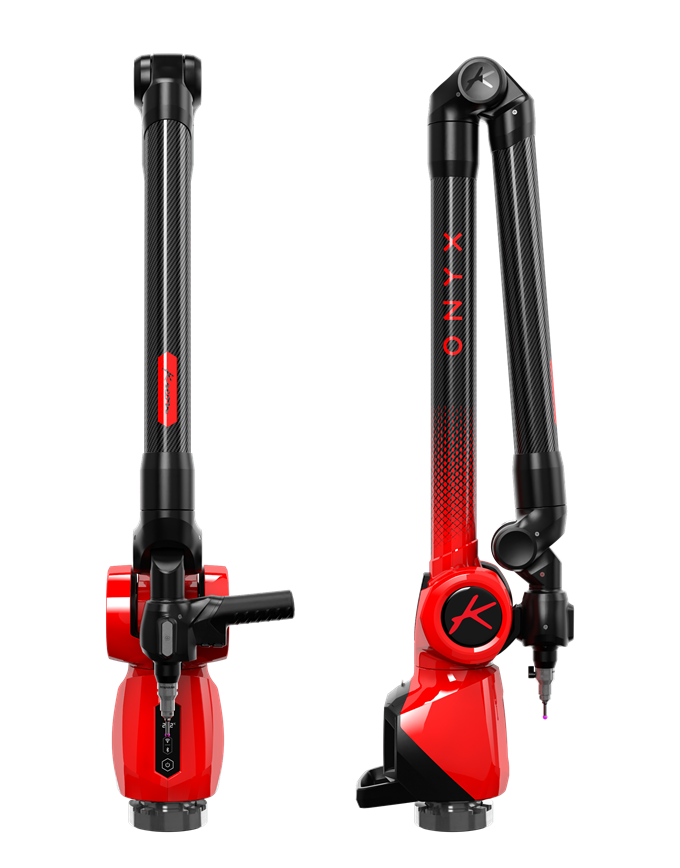

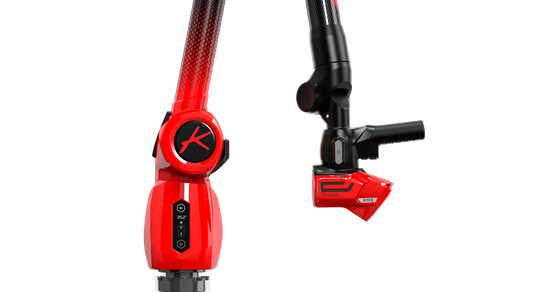

Kreon Onyx Arm
The Kreon Onyx portable measuring arm is the definition of high precision for flexible 3D measurement of components and tools regardless of shape, size, laser scanning or tactile measurement.
All Kreon's measuring arms are validated according to ISO 10360-12 providing assurance in the arm's performance and traceability in measurement results.
Kreon listens to their customers
The design of the Kreon Onyx was developed with Kreon's creativity along with customer feedback, resulting in one of the market's best portable measuring arms.
The Kreon Onyx has higher accuracy compared to its predecessor thanks to its new innovative encoders, more flexibility as the pistol grip now has a simple "clip on / clip off" function, full scanning via WiFi, and the arm's balance is improved, which together with infinite rotation in the joints provides a more ergonomic function without losing the stable feeling that Kreon's measuring arms are known for.
The measuring arm feels at home whether it's out in production, in the measurement lab, or even outdoors. The arm can be used in many extreme environments and still maintain its accuracy. The flexibility to take the measurement to the object instead of vice versa, as well as the ability to measure both large and small, makes the measuring arm unique in its design.
The Kreon Onyx has higher accuracy compared to its predecessor thanks to its new innovative encoders, more flexibility as the pistol grip now has a simple "clip on / clip off" function, full scanning via WiFi, and the arm's balance is improved, which together with infinite rotation in the joints provides a more ergonomic function without losing the stable feeling that Kreon's measuring arms are known for.
The measuring arm feels at home whether it's out in production, in the measurement lab, or even outdoors. The arm can be used in many extreme environments and still maintain its accuracy. The flexibility to take the measurement to the object instead of vice versa, as well as the ability to measure both large and small, makes the measuring arm unique in its design.
Do you have questions?
Contact the Nyli team to find the right solution for you!
Specification - Measurement Uncertainty
- Lightweight

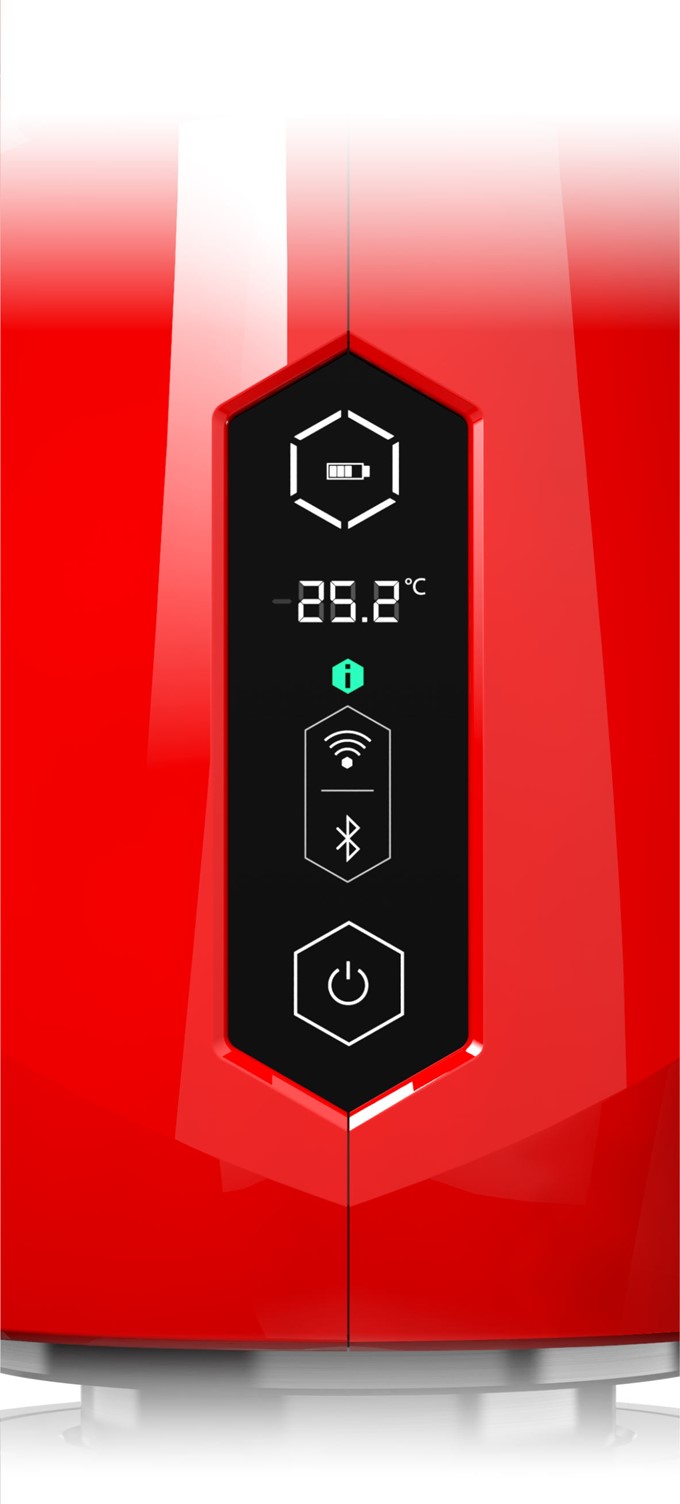

- Wireless measurement (WiFi or Bluetooth)
- Temperature compensation
- Brunson universal mount, makes the arm compatible for multiple attachments
- "Clip on / Clip off" function on the pistol grip
- Joints with infinite rotation for better ergonomics
- Compatible with laser scanners Solano Ace, Skyline Ace and Zephyr 3
- Compatible with software such as Polyworks, Metrologic, Aberlink 3D and more
Arm Model | E Uni | P Size | P Form | L Dia | SPAT |
Onyx-6-20 | 0.024 mm | 0.007 mm | 0.015 mm | 0.030 mm | 0.017 mm |
Onyx-6-25 | 0.026 mm | 0.008 mm | 0.016 mm | 0.032 mm | 0.019 mm |
Onyx-6-30 | 0.038 mm | 0.012 mm | 0.022 mm | 0.046 mm | 0.028 mm |
Onyx-6-35 | 0.051 mm | 0.015 mm | 0.030 mm | 0.062 mm | 0.035 mm |
Onyx-6-40 | 0.062 mm | 0.020 mm | 0.036 mm | 0.078 mm | 0.042 mm |
Onyx-6-45 | 0.072 mm | 0.024 mm | 0.041 mm | 0.090 mm | 0.057 mm |
Onyx-6-50 | 0.110 mm | 0.038 mm | 0.058 mm | 0.110 mm | 0.080 mm |
Arm Model | E Uni | P Size | P Form | L Dia | SPAT |
Onyx-7-20 | 0.025 mm | 0.010 mm | 0.018 mm | 0.040 mm | 0.020 mm |
Onyx-7-25 | 0.028 mm | 0.011 mm | 0.021 mm | 0.044 mm | 0.023 mm |
Onyx-7-30 | 0.050 mm | 0.016 mm | 0.028 mm | 0.072 mm | 0.035 mm |
Onyx-7-35 | 0.061 mm | 0.020 mm | 0.035 mm | 0.087 mm | 0.043 mm |
Onyx-7-40 | 0.074 mm | 0.025 mm | 0.040 mm | 0.102 mm | 0.052 mm |
Onyx-7-45 | 0.100 mm | 0.038 mm | 0.049 mm | 0.110 mm | 0.065 mm |
Onyx-7-50 | 0.120 mm | 0.052 mm | 0.062 mm | 0.125 mm | 0.089 mm |
Arm Model | Skyline | Skyline Wide | Skyline | Skyline Open |
Onyx-7-20 | 0.038 mm | 0.042 mm | 0.054 mm | 0.044 mm |
Onyx-7-25 | 0.040 mm | 0.044 mm | 0.056 mm | 0.047 mm |
Onyx-7-30 | 0.050 mm | 0.055 mm | 0.067mm | 0.057 mm |
Onyx-7-35 | 0.064 mm | 0.069 mm | 0.081 mm | 0.072 mm |
Onyx-7-40 | 0.075 mm | 0.079 mm | 0.091 mm | 0.082 mm |
Onyx-7-45 | 0.093 mm | 0.102 mm | 0.0114 mm | 0.109 mm |
Onyx-7-50 | 0.120 mm | 0.130 mm | 0.142 mm | 0.140 mm |
Product Video
Related Products

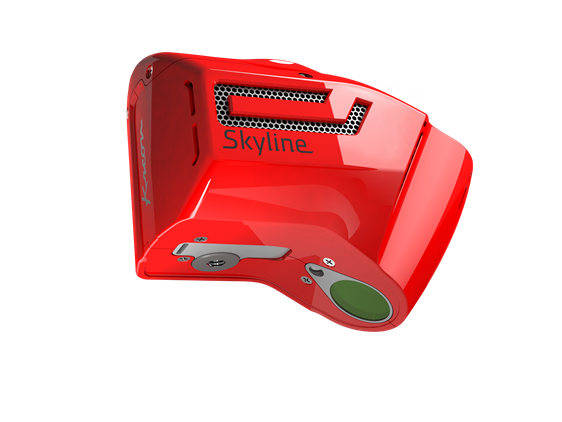

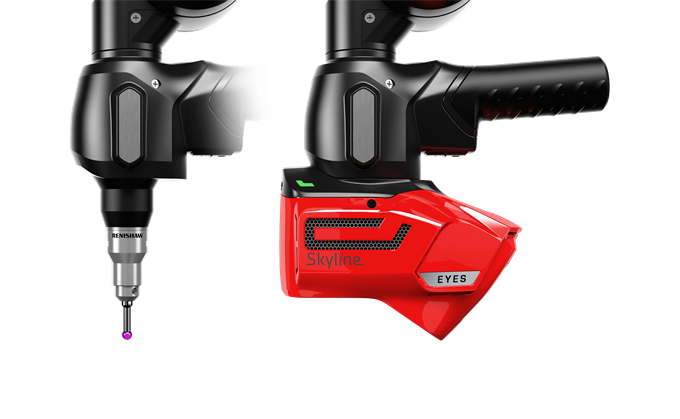

Kreon Skyline
Optimised for use with Kreon Ace and Onyx arms, making it an obvious choice for scanning with a focus on ergonomics and precision.
- Precision från 9µ
- Scan reflective surfaces
- Scan a width up to 300mm
