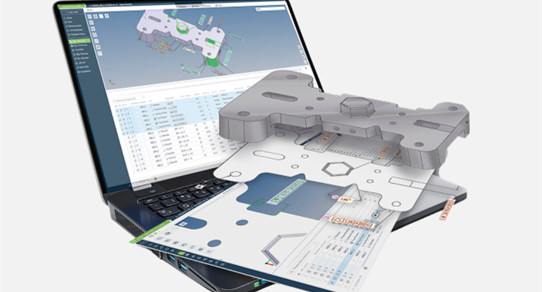

HQA_Balloon3D

2D and 3D Balloon

High QA is a leading provider of integrated software for manufacturing companies. High QA 360 manages processes for quality (QMS) and supplier quality management (SQS).

High QA's automatic "Ballooning" tool revolutionises
how you handle 2D drawings and 3D PMI models.

Using advanced OCR technology (optical character recognition), it automatically identifies dimensions, applies "balloons" and fills in the "List of Characteristics" (BoC).

This innovative feature saves time, reduces manual errors and helps ensure that your inspection process complies with industry standards like AS9100 and APQP.



With High QA's automatic "Ballooning" tool, you can:
  • Automatically extract entire drawings or specific pages

  • Exclude dimensions such as reference dimensions, basic dimensions or general tolerance dimensions.

  • Identify and extract surface finishes, flag notes and more
    using smart OCR settings.

  • Easily customise balloon numbering patterns and views for better structure.

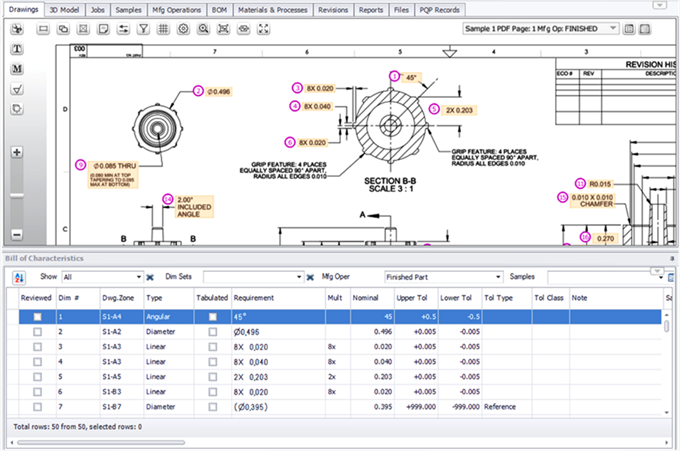

HQA_Drawing2D

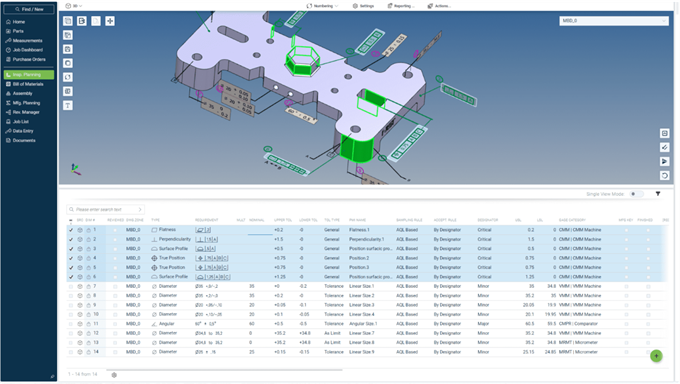

HQA_Drawing3D

Interested to know more?

Feel free to contact Andreas to book a Teams demo:

Product video
