QuadDualPurpose
QuadDualPurpose is an additional rotary axis for coordinate measuring machines and meets the requirements of ISO 10360 Part 3.
Precision rotary axis specifically developed to increase the flexibility and efficiency of your CMM.
Flexible inspection in multiple positions

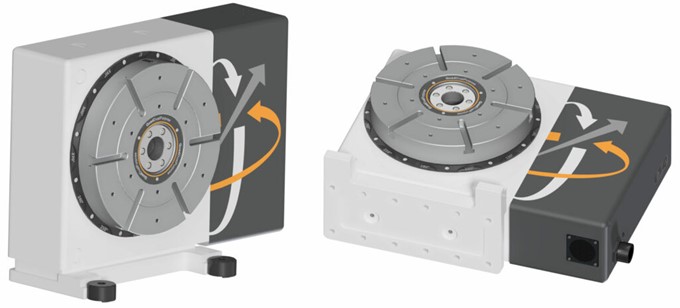

QuadDualPurpose is a precision rotary axis developed for coordinate measuring machines (CMMs) and makes it possible to inspect parts both horizontally and vertically. The flexibility makes the system particularly suitable for larger and complex parts, for example aircraft engine blades, where they may need to be measured from several directions.
Increased efficiency and productivity
By integrating QuadDualPurpose into your CMM, an additional rotary axis is added, making it possible to rotate the workpiece instead of moving it manually. This increases access to all measurement points and improves both productivity and efficiency in the measurement process. The system meets the requirements of ISO 10360-3 and is developed for high-precision metrology.
Stable design for large parts
QuadDualPurpose is available with table tops of Ø250 mm, Ø300 mm and Ø400 mm and handles loads up to 1,000 kg and load moments up to 500 Nm. The system can be equipped with a powerful pneumatic clamp for secure fixing of the workpiece and offers angular accuracy of up to 2 arcseconds, making it a stable and accurate solution for advanced CMM inspection.
- Horizontal or vertical applications
- Sizes Ø250 mm, Ø300 mm and Ø400 mm

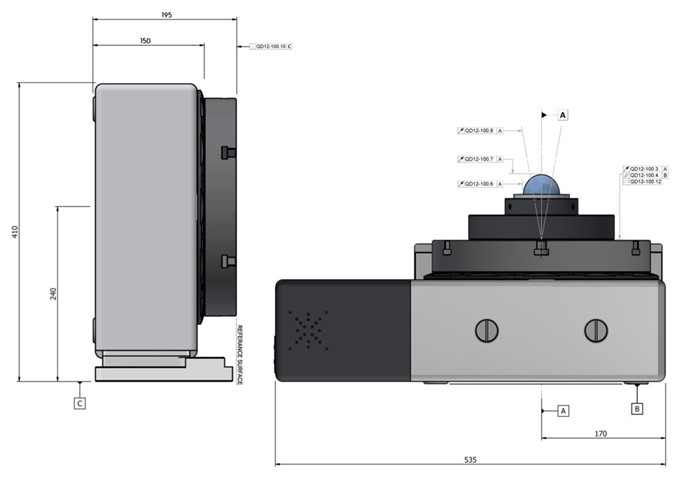

- Total height 195 mm (vertical axis)
- Centreline height 240 mm (horizontal axis)
- Load capacity up to 1,000 kg
- Load moment up to 500 Nm
- Powerful pneumatic clamp (optional)
- Angular accuracy 2 arcseconds
| QuadDualPurpose SPEC | ||||||
|---|---|---|---|---|---|---|
| Technical Data | RPI QD Number | Units | 250 | 300 | 400 | |
| Accuracy | Angular Positioning Accuracy** | QD12-100.5 | Arc Seconds | 2 | ||
| Precision | Radial Error Motion | QD12-100.6 | µm | 0.5 | ||
| Axial Error Motion | QD12-100.7 | µm | 0.5 | |||
| Tilt Error Motion | QD12-100.8 | Arc Seconds | +/- 0.5 | |||
| Concentricity of Centre Bore (Table Top) | QD12-100.9 | µm | 2.5 | |||
| Total Face Runout (Table Top) | QD12-100.3 | µm | 5 | |||
| Flatness (Table Top) | QD12-100.12 | µm | 5 | |||
| Parallelism (Table Top) | QD12-100.4 | µm | 6 | |||
| Squareness (Table Top) | QD12-100.10 | µm | 4 | |||
| Drive assembly | Load Capacity | kgs | 1000 | |||
| Maximum Continuous Torque | Nm | 165 | ||||
| Maximum Polar Inertia | N/A | Kgm² | 20 | |||
| Maximum Tilt Moment | Nm | 500 | ||||
| Maximum rpm | rpm | 4 | ||||
| Weight | kgs | 92 | 100 | 115 | ||
| Interface | Centre Bore (Table Top) | N/A | mm | Ø40 H6 | ||
| Centre Line Height | mm | 240 | ||||
| QD56-02-B | Further information available on request | |||||
* As an option
** The total bi-directional Angular Accuracy of the system including the effects of bi-directional Repeatability with a coverage factor of k = 2.
