LabStandardCOMPACTDUO

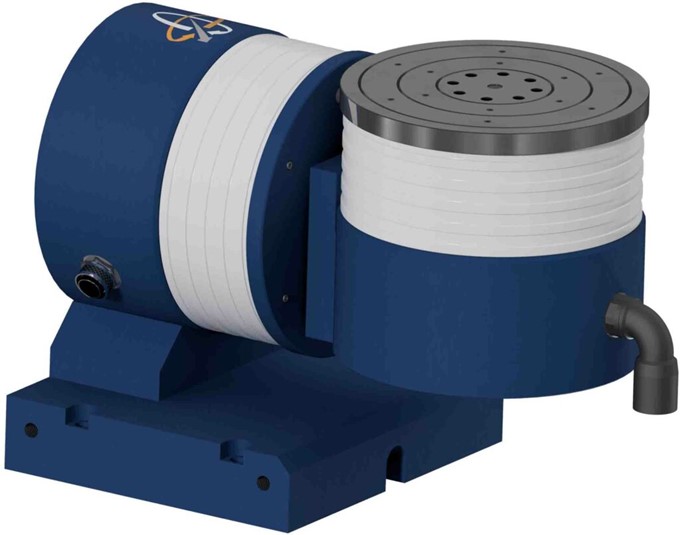

LabStandardCOMPACTDUO is a dual-axis rotary table specifically designed for inspection of complex 3D components with a backlash-free drive.
Dual-axis rotary table for advanced 3D inspection
Developed for complex components
LabStandardCOMPACTDUO is a dual-axis rotary table engineered for accurate inspection of complex 3D parts. The combination of a rotary axis and a tilt axis makes it possible to analyse components from multiple angles, making the system particularly suitable for, for example, rotor blades and blisks in the aerospace industry.
Precision positioning without backlash
The system is equipped with a backlash-free drive system that ensures very smooth and precise rotation. The rotary axis offers 360° movement while the tilt axis can be adjusted up to ±120°, enabling complete inspection of components from all relevant positions. The high angular accuracy – 2 arcseconds for the rotary axis and 5 arcseconds for the tilt axis – provides highly reliable measurement results.
Stable solution for fine metrology

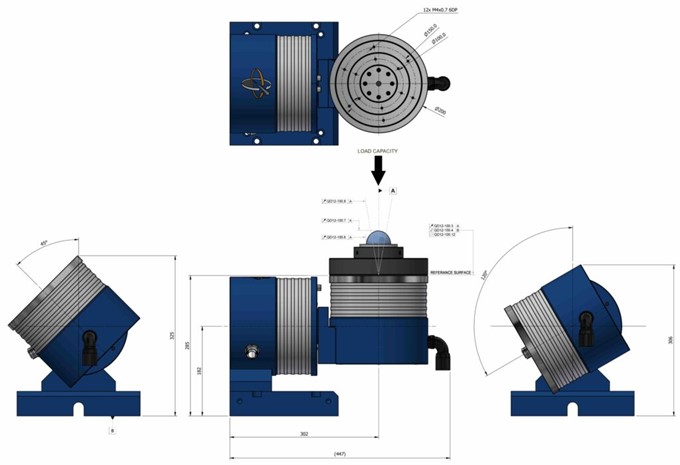

With a table top of Ø200 mm and capacity for loads up to 5 kg or 5 Nm, LabStandardCOMPACTDUO is developed for smaller but geometrically advanced components. The rotational speed up to 10 rpm and the stable design make the system well suited for precision testing, metrology and detailed 360° inspection.
- 360° rotary axis and +/-120° tilt axis
- Size Ø200 mm
- Two axes
- Load capacity up to 5 kg or 5 Nm
- Rotational speed 10 rpm
- Backlash-free drive
- Rotary axis angular accuracy 2 arcseconds
- Tilt axis angular accuracy 5 arcseconds
| LabStandardCOMPACTDUO SPEC | ||||
|---|---|---|---|---|
| Technical Data | RPI QD Number | Units | QuadProfileDUO | |
| Accuracy | Rotary Stage Angular Positioning Accuracy* | QD12-100.5 | Arc Seconds | 2 |
| Tilt Stage Angular Positioning Accuracy* | QD12-100.5 | 5 | ||
| Precision | Radial Error Motion | QD12-100.6 | µm | 1 |
| Axial Error Motion | QD12-100.7 | 1 | ||
| Tilt Error Motion | QD12-100.8 | Arc Seconds | +/- 1 | |
| Total Face Runout (Table Top) | QD12-100.3 | µm | 5 | |
| Flatness (Table Top) | QD12-100.12 | 5 | ||
| Parallelism (Table Top) | QD12-100.4 | 10 | ||
| Squareness (Table Top) | QD12-100.10 | 10 | ||
| Drive assembly | Load Capacity | kgs | 5 | |
| Maximum Continuous Torque | Nm | 40 | ||
| Maximum Polar Inertia | N/A | Kgm² | 0.05 | |
| Maximum Tilt Moment | Nm | 5 | ||
| Maximum rpm | rpm | 10 | ||
| Weight | kgs | 75 | ||
| Range | Traverse Range - Tilt Axis | N/A | degrees | +/- 120 |
| Traverse Range - Rotary Axis | 360 | |||
| QD56-24-A | Additional information available on request | |||
* The total bi-directional Angular Accuracy of the system including the effects of bi-directional Repeatability with a coverage factor of k = 2.
