LabStandardCompact
Rotary table with a high-precision angle encoder that guarantees sensitivity and fine positioning for metrology and precision testing.
Compact rotary table for precision measurement and calibration.
High precision in a compact format
LabStandardCompact is a high-precision rotary table developed for accurate angular positioning, calibration and geometric inspection in metrology and test applications. The high-resolution angle encoder provides highly sensitive positioning and ensures stable and accurate measurement even with demanding precision requirements.

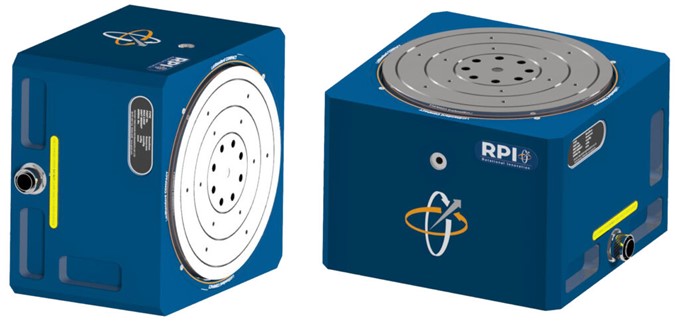

Flexible use in multiple orientations
The rotary table can be used both horizontally and vertically, making it easy to adapt to different measurement setups. The backlash-free drive ensures smooth rotation and high repeatability, while the rotational speed of up to 10 rpm provides efficient positioning during the measurement process.
Stable solution for smaller components
With a table top of Ø200 mm and a load capacity of up to 100 kg or 25 Nm, LabStandardCompact is designed for inspection of smaller components where high accuracy is crucial. The system offers an angular accuracy of 2, 1 or 0.5 arcseconds and is well suited for fine metrology, quality control and precision testing.

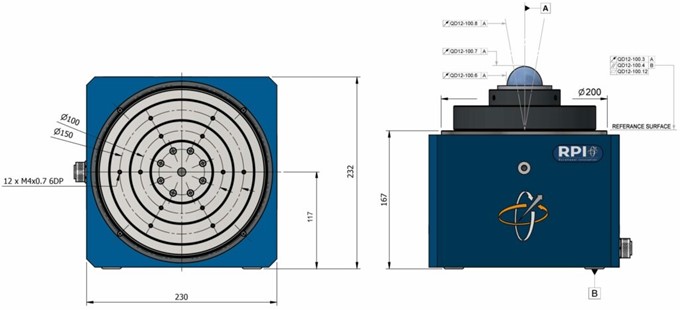

- Size Ø200 mm
- Vertical or horizontal axis
- Load capacity up to 100 kg or 25 Nm
- Rotational speed 10 rpm
- Backlash-free drive
- Angular accuracy 2, 1 or 0.5 arcseconds
| LabStandardCOMPACT SPEC | ||||||
|---|---|---|---|---|---|---|
| Technical Data | RPI QD Number | Units | 2 | + | ULTRA | |
| Accuracy | Angular Positioning Accuracy* | QD12-100.5 | Arc Seconds | 2 | 1 | 0.5 |
| Precision | Radial Error Motion | QD12-100.6 | µm | 1 | ||
| Axial Error Motion | QD12-100.7 | µm | 1 | |||
| Tilt Error Motion | QD12-100.8 | Arc Seconds | +/- 0.5 | |||
| Total Face Runout (Table Top) | QD12-100.3 | µm | 5 | |||
| Flatness (Table Top) | QD12-100.12 | µm | 5 | |||
| Parallelism (Table Top) | QD12-100.4 | µm | 8 | |||
| Squareness (Table Top) | QD12-100.10 | µm | 8 | |||
| Drive assembly | Load Capacity Vertical Axis | kgs | 100 | |||
| Maximum Continuous Torque | Nm | 40 | ||||
| Maximum Polar Inertia | N/A | Kgm² | 0.5 | |||
| Maximum Tilt Moment | Nm | 25 | ||||
| Back Driving Torque | Nm | 3 | ||||
| Maximum rpm | rpm | 10 | ||||
| Weight | kgs | 30 | ||||
| QD56-03-E | Additional information available on request | |||||
* The total bi-directional Angular Accuracy of the system including the effects of bi-directional Repeatability with a coverage factor of k = 2.
