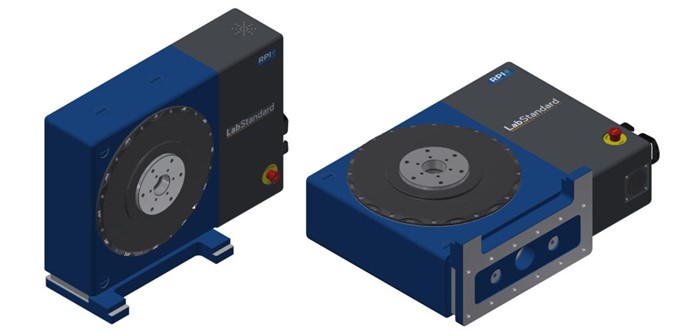

LabStandard
Designed for horizontal and vertical applications with a self-locking worm gear and a high-precision angle encoder.
Rotary tables from RPI with extremely high precision.
High precision for laboratory and metrology tasks
LabStandard is a top-class rotary table developed for accurate angular positioning, calibration and geometric inspection. The table offers angular accuracy of 2, 1 or 0.5 arcseconds and is designed for the most demanding measurement tasks in laboratory and test environments.
Powerful and flexible design
LabStandard is available with table platters Ø250 mm, Ø300 mm or Ø400 mm and can be used horizontally or vertically. The table handles loads up to 1,000 kg and tilting moments up to 500 Nm, making it possible to measure and inspect large and heavy components while maintaining precision.
Secure clamping and stability
With a powerful pneumatic clamp (optional) and robust design, LabStandard ensures secure clamping of the workpiece throughout the measurement process. This makes the table ideal for advanced quality control, calibration and precision metrology where both accuracy and stability are crucial.
- Horizontal or vertical applications
- Optional table platter sizes Ø250 mm, Ø300 mm and Ø400 mm

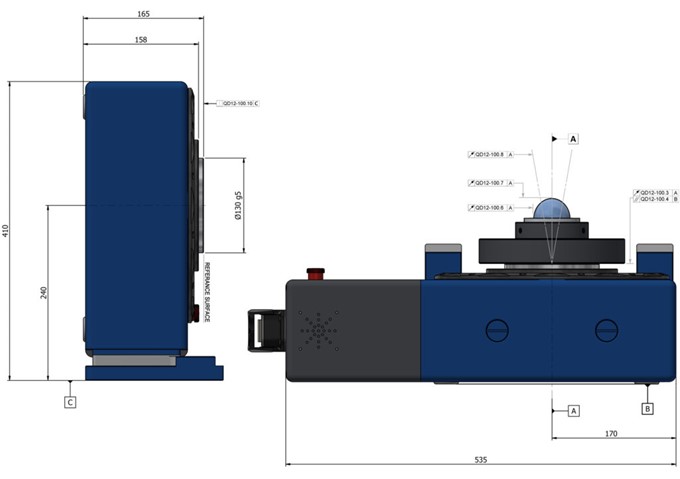

- Total height 165 mm (vertical axis)
- Centreline height 240 mm (horizontal axis)
- Load capacity up to 1,000 kg
- Tilting moment up to 500 Nm
- Powerful pneumatic clamp (optional)
- Angular accuracy 2, 1 or 0.5 arcseconds
| LabStandard SPEC | ||||||
|---|---|---|---|---|---|---|
| Technical Data | RPI QD Number | Units | 2 | + | ULTRA | |
| Accuracy | Angular Positioning Accuracy** | QD12-100.5 | Arc Seconds | 2 | 1 | 0.5 |
| Precision | Radial Error Motion | QD12-100.6 | µm | 0.5 | ||
| Axial Error Motion | QD12-100.7 | µm | 0.5 | |||
| Tilt Error Motion | QD12-100.8 | Arc Seconds | +/- 0.5 | |||
| Total Face Runout (Spindle) | QD12-100.3 | µm | 3 | |||
| Parallelism (Spindle) | QD12-100.4 | µm | 6 | |||
| Squareness (Spindle) | QD12-100.10 | µm | 4 | |||
| Drive assembly | Load Capacity | kgs | 1000 | |||
| Maximum Continuous Torque | Nm | 165 | ||||
| Maximum Polar Inertia | N/A | Kgm² | 20 | |||
| Maximum Tilt Moment | Nm | 500 | ||||
| Maximum rpm | rpm | 4 | ||||
| Weight Without Table Top | kgs | 80 | ||||
| Interface | Pivot Shaft OD | N/A | mm | Ø130 g5 | ||
| Centre Line Height | mm | 240 | ||||
| Options | Total Face Runout (Table Top)* | QD12-100.3 | µm | 5 | ||
| Flatness (Table Top)* | QD12-100.12 | µm | 5 | |||
| Parallelism (Table Top)* | QD12-100.4 | µm | 6 | |||
| Squareness (Table Top)* | QD12-100.10 | µm | 4 | |||
| Concentricity of Centre Bore (Table Top)* | QD12-100.9 | µm | 2.5 | |||
| Center Bore (Table Top)* | N/A | µm | Ø40 H6 | |||
| Clamp Shift* | Arc Seconds | 2 | ||||
| QD56-01-C | Further information available on request | |||||
* As an option
** The total bi-directional Angular Accuracy of the system including the effects of bi-directional Repeatability with a coverage factor of k = 2.
Need help?
Get in touch with us at Nyli!
Related products
LabStandardAIR
The LabStandardAIR rotary table offers a "contactless" system for high precision and repeatability.
- Top-class precision

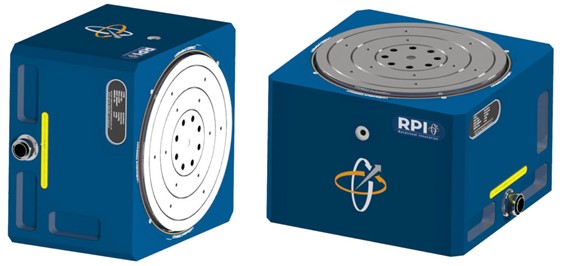

LabStandardCompact
