VX8200
When you choose the VX8200 from Chotest, you get an optical measuring machine with a double telecentric optical lens that provides high depth of field and precision.
Optical measuring machine that performs fast dimensional measurements thanks to one-button control.
Robust design and great value
When you choose an optical measuring machine from Chotest, you can be sure you are getting a product built to a high standard. They are very durable and withstand daily use year after year. Despite their high quality, they are also very competitively priced—here you get a lot of measuring machine for your money. That makes Chotest an easy choice for optical measuring machines!
Easy to use with software from Chotest
All optical measuring machines from Chotest come with their in-house measurement software VisionX. The software is designed to give the user simple and fast analysis of their measurements. The program has clear visual elements that make analysis smooth. With up to 80 analysis tools, analysis is easy no matter what you measure.
Dimensional measurement of parts in different applications
Built with advanced image-analysis algorithms, the VX8200 is suitable for dimensional measurement of parts from many applications such as machinery, electronics, moulds, injection moulding, hardware, rubber, low-voltage appliances, magnetic materials, precision stamping, connectors, connections, terminals, mobile phones, household appliances, circuit boards, medical equipment, watches, cutting tools, etc.
The VisionX software offers up to 80 tools for extraction analysis, including [Feature Extraction] (such as maximum points, centre lines, arcs, peaks, etc.), [auxiliary tools] (e.g. any point, line and circle, fitted straight line, fitted circle, tangent, inscribed circle, etc.), [smart labelling], [form tolerance] and specialised [application tools] (e.g. pitch distance, pitch angle, grooves, threads, round intersection, downward angle, rounded corners, etc.).
The measurement results and their key statistical values (e.g. mean, σ, 3σ, 6σ, Ca, Cp, Cpk, etc.) are recorded and archived automatically. Operators can select different filter conditions for historical extraction.
| Model | VX8200 | |||
| Image Sensor | 20MP CMOS | |||
| Monitor | Built-in | 10.4" LCD (XGA:1024×768) | ||
| External | 24" LCD (XGA:1920×1080) (Optional) | |||
| Acceptance Lens | Double Telecentric Lens | |||
| Light | Ring Light | Four-segment illumination (White Light) | ||
| Back Light | Telecentric transmission illumination (Green Light) | |||
| Field of View | Large field | 200*200mm (4 Angle R50) | ||
| High precision | 130*130mm | |||
| Resolution | 0.1um | |||
| Repeatability of Image Meas. | Wide Field | Without Stitching*1 | ±1um | |
| With Stitching*2 | ±2um | |||
| High precision | Without Stitching*1 | ±0.5um | ||
| With Stitching*2 | ±1.5um | |||
| Accuracy of Image Meas. | Wide field | Without Stitching*1 | ±3um | |
| With Stitching*2 | ±(5+0.02L)μm | |||
| High precision | Without Stitching*1 | ±1.5um | ||
| With Stitching*2 | ±(3+0.02L)μm | |||
| Horizontal Rotary Unit (Optional) | Rotation Angle | Range 360°, Resolution 0.02° | ||
| Rotation Speed | 0.2~2rev/s | |||
| Max Diameter | Φ60mm | |||
| XY Object Table | X Travel range | 110mm | ||
| Y Travel range | 110mm | |||
| Loading Capacity | 7.5kg | |||
| Z-Axis Travel range | 75mm | |||
| Size (LxWxH) | 531×386×731mm | |||
| Weight | 49kg | |||
| Input | AC100~240V, 50/60Hz, 2A, 300W | |||
| Working Environment | Temp. 10℃~35℃, Humidity 20%～80%, Vibration<0.002g, Less than 15Hz | |||
Remarks:
*1 In the focus position, the ambient temperature is +20 °C ± 1.0 °C
*2 In the focus position, the ambient temperature is +20 °C ± 1.0 °C, and the load on the table is 2 kg or less; L is the travel range of the table (mm)
The trend chart shows the regular trend of the measured values, such as monotonic and periodic changes in the measured values, which can be used to monitor deviations in the production process for manufacturing equipment. The histogram reflects the status and distribution of fluctuations in product quality and can intuitively show information about the quality situation in the production process, which can be used to predict product quality and defect rate.
Through quality diagnosis and analysis using statistical methods, SPC can monitor product quality and the change trend in the production process. With SPC, we can find preventive solutions in the production process, so that subsequent inspections and repairs are reduced. Consequently, control of the production process and improvement of product quality are achieved.
Do you need help with dimensional measurement?
Contact us at Nyli!
Related products

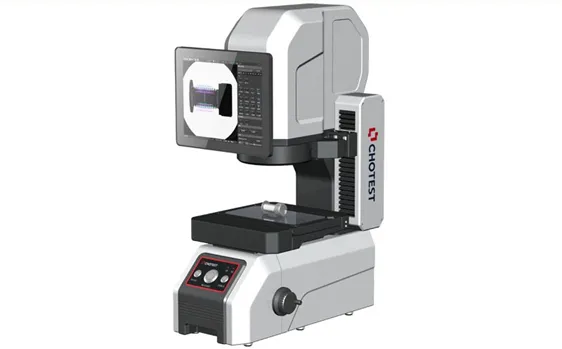

VX3030D
