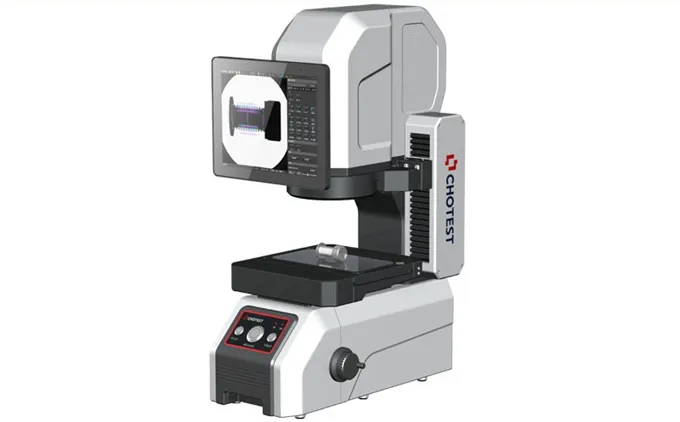

VX3030D
High-precision optical measuring machine from Chotest. Easy measurement at the touch of a button and user-friendly measuring software.
Choose the VX3030D when you want an optical measuring machine with user-friendly measuring software and simple operation using just one button. The double telecentric optical lens provides a large depth of field for high-precision measurements.
Robust design and great value
When you choose an optical measuring machine from Chotest, you can be sure you are getting a product built to a high standard. They are very durable and withstand daily use year after year. Despite their high quality, they are also very cost-effective; you get a lot of measuring machine for the money. That makes Chotest an easy choice for optical measuring machines!
Easy operation with software from Chotest
All optical measuring machines from Chotest come with their in-house measurement software, VisionX. The software is designed to give the user simple and fast analysis of their measurements. The program has clear visual elements that make analysis smooth. With up to 80 analysis tools, analysis is easy no matter what you are measuring.
Measurements for different parts
The VX3030D has several functions that enable accurate dimensional measurement of parts from various fields and applications. This includes, among others, machinery, electronics, moulds, injection moulding, hardware, rubber, low-voltage devices, magnetic materials, precision stamping, connectors, connections, terminals, mobile phones, household appliances, circuit boards, medical equipment, watches, cutting tools, etc.
The VisionX software offers up to 80 tools for extraction analysis, including [Feature Extraction] (such as maximum points, centre lines, arcs, peaks, etc.), [accessory tools] (e.g. any point, line and circle, fitted straight line, fitted circle, tangent, inscribed circle, etc.), [smart marking], [form tolerance] and special tools [application tools] (e.g. pitch distance, pitch angle, groove, thread, round intersection, downward angle, rounded corners, etc.).
The measurement results and their key statistical values (e.g. mean, σ, 3σ, 6σ, Ca, Cp, Cpk, etc.) are recorded and archived automatically. Operators can select different filter criteria for historical extraction.
| Model No. | VX3030D | ||
| Image Sensor | 5MP CMOS | ||
| Monitor | Built-in | 10.4" LCD (XGA:1024×768) | |
| External | 24" LCD (XGA:1920×1080) | ||
| Acceptance Lens | Double Telecentric Lens | ||
| Light | Ring Light | Four-segment illumination (White Light) | |
| Back Light | Telecentric transmission illumination (Green Light) | ||
| Field of View | Large Field | 130x20mm | |
| High Precision | 116x6mm | ||
| Repeatability of Image Meas. | Wide field | Without Stitching*1 | ±0.5um |
| With Stitching*2 | ±1um | ||
| High precision | Without Stitching*1 | ±0.1um | |
| With Stitching*2 | ±0.5um | ||
| Accuracy of Image Meas. | Wide field | Without Stitching*1 | ±2um |
| With Stitching*2 | ±(4+0.02L)μm | ||
| High precision | Without Stitching*1 | ±0.7um | |
| With Stitching*2 | ±(2+0.02L)μm | ||
| Software | VisionX | ||
| Resolution | 0.1um | ||
| Physical Probe | No | ||
| XY Object Table | X Travel Range | 110mm | |
| Y Travel Range | -------------------------- | ||
| Loading Capacity | 2kg | ||
| Z-Axis Travel Range | 35mm (Motorised) | ||
| Size (LxWxH) | 500×280×670mm | ||
| Weight | 31kg | ||
| Input | AC100~240V,50~60Hz,2A,300W | ||
| Working Environment | Temp.10℃~35℃, Humidity 20%～80%, Vibration<0.002g, Less than 15Hz | ||
Remark:
*1 In the focus position, the environment temperature is +20 °C ± 1.0 °C
*2 In the focus position, the environment temperature is +20 °C ± 1.0 °C, and the load on the table is 1 kg or less; L is the moving range of the table (mm).
The trend chart shows the regular trend of the measured values, such as monotonic and periodic changes in the measured values, which can be used to monitor deviations in the production process for manufacturing equipment. The histogram reflects the status and distribution of fluctuations in product quality and can intuitively display information about the quality situation in the production process, which can be used to predict product quality and defect rate.
Through quality diagnosis and analysis using statistical methods, SPC can monitor product quality and the change trend in the production process. With SPC, we can find preventive solutions in the production process, so that subsequent inspections and repairs are reduced. Consequently, control of the production process and improvement of product quality are achieved.
Nyli - your partner for optical measuring machines
Let our team take care of you!
Related products
VX3100D
High-precision optical measuring machine from Chotest. User-friendly VisionX measuring software and simple one-button press for measurements.
- Measure with a button press
- User-friendly software
- High depth of field

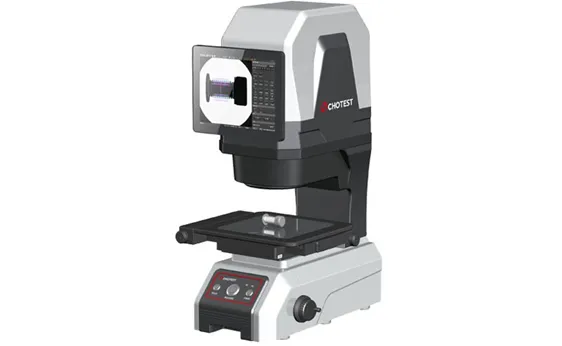

VX3200D
