VX3100D
High-precision optical measuring machine from Chotest. User-friendly VisionX measuring software and simple one-button press for measurements.
Here you will find an optical measuring machine from Chotest with a double telecentric optical lens and their own user-friendly measuring software, VisionX.
Robust design and great value
When you choose an optical measuring machine from Chotest, you can be sure you are getting a product built to a high standard. They are very durable and cope with daily use year after year. Despite their high quality, they are also very competitively priced—here you get a lot of measuring machine for your money. This makes Chotest an easy choice for optical measuring machines!
Easy to use with software from Chotest
All optical measuring machines from Chotest come with their in-house developed measuring software, VisionX. The software is designed to give the user simple and fast analysis of their measurements. The program has clear visual elements that make analysis smooth. With up to 80 analysis tools, analysis is easy regardless of what you measure.
Optical measuring machine with simple operation
With advanced measuring software and simple one-button operation, it is no surprise that the VX3100D is suitable for dimensional measurement of parts in a wide range of applications. This includes, among other things, machinery, electronics, moulds, injection moulding, hardware, rubber, low-voltage appliances, magnetic materials, precision stamping, connectors, connections, terminals, mobile phones, household appliances, circuit boards, medical equipment, watches, cutting tools, etc.
The VisionX software offers up to 80 tools for extraction analysis, including [Feature Extraction] (such as maximum points, centre lines, arcs, peaks, etc.), [auxiliary tools] (e.g. arbitrary point, line and circle, fitted straight line, fitted circle, tangent, inscribed circle, etc.), [smart marking], [form tolerance] and special tools [application tools] (e.g. pitch distance, pitch angle, grooves, threads, round intersection, draft angle, rounded corners, etc.).
The measurement results and their key statistical values (e.g. mean, σ, 3σ, 6σ, Ca, Cp, Cpk, etc.) are recorded and archived automatically. Operators can select different filter criteria for extracting history.
| Model | VX3100 | VX3100D | ||
| Image Senor | 5M CMOS | |||
| Monitor | Built-in | 10.4" LCD (XGA:1024×768) | ||
| External | 24" LCD (XGA:1920×1080) | |||
| Acceptance Lens | Double Telecentric Lens | |||
| Light | Ring Light | Four-segment illumination (White Light/Green Light) | ||
| Back Light | Telecentric transmission illumination (Green Light) | |||
| F.O.V. | Large field | 200x100mm (4 Angles R50) | ||
| High precision | / | 120x20mm | ||
| Repeatability of Image Meas. | Wide Field | Without Stitching*1 | ±1um | |
| With Stitching*2 | ±2um | |||
| High Precision | Without Stitching* | / | ±0.5um | |
| With Stitching*2 | / | ±1.5um | ||
| Accuracy of Image Meas. | Large field | Without Stitching*1 | ±5um | |
| With Stitching*2 | ±(7+0.02L)μm | |||
| High precision | Without Stitching*1 | / | ±2um | |
| With Stitching*2 | / | ±(4+0.02L)μm | ||
| Software | VisionX | |||
| Resolution | 0.1um | |||
| Physical Probe | No | |||
| XY Object Table | X Travel Range | 110mm | ||
| Y Travel Range | -------------------------- | |||
| Loading Capacity | 2kg | |||
| Z-Axis Travel Range | 35mm (Motorised) | |||
| Size (LxWxH) | 500×280×670mm | |||
| Weight | 30kg | 31kg | ||
| Input | AC100~240V/50~60Hz,2A,300W | |||
| Working Environment | Temp.10℃~35℃, Humidity 20%～80%, Vibration<0.002g, Less than 15Hz | |||
Remarks:
*1 In the focus position, the ambient temperature is +20 °C ± 1.0 °C
*2 In the focus position, the ambient temperature is +20 °C ± 1.0 °C, and the load on the table is 1 kg or less; L is the moving range of the table (mm).
The trend chart shows the regular trend of the measured values, such as monotonic and periodic changes in the measured values, which can be used to monitor deviations in the production process for manufacturing equipment. The histogram reflects the status and distribution of fluctuations in product quality and can intuitively display information about the quality situation in the production process, which can be used to predict product quality and defect rate.
Through quality diagnosis and analysis using statistical methods, SPC can monitor product quality and the change trend in the production process. With SPC, we can find preventive solutions in the production process, so that subsequent inspections and repairs are reduced. Consequently, control of the production process and improvement of product quality are achieved.
Nyli helps you choose
The Nyli team is ready to help you!
Related products

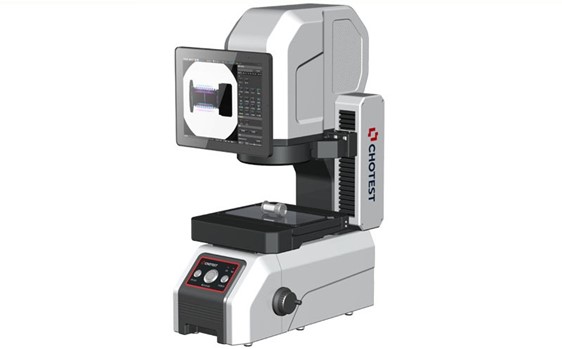

VX3030D
