Fulcrum CMM

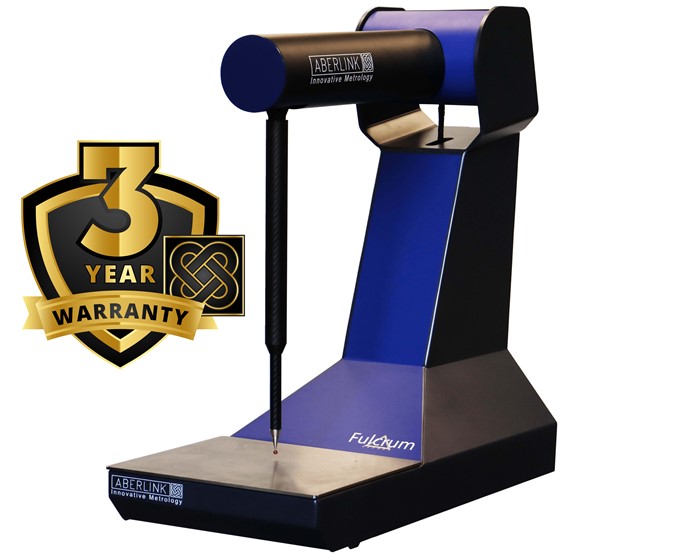

The Fulcrum is a revolutionary manual CMM, by employing a three rotary axis design, Aberlink have created a space-efficient tabletop design enabling it to be used where it is needed, on the shop floor near your machine tools.

Designed to optimize inspection as parts come off the machine one op at a time, feeding back to the machining process at the earliest opportunity, before final inspection, before more expense.

Focus on User-Friendlyness

A simpler user interface has been developed for Aberlink measurement software, making it even easier to use on a manual CMM, while retaining full functionality. After manually scanning the part, critical features are automatically recognized, and dimensions automatically displayed.


One-Handed Inspection

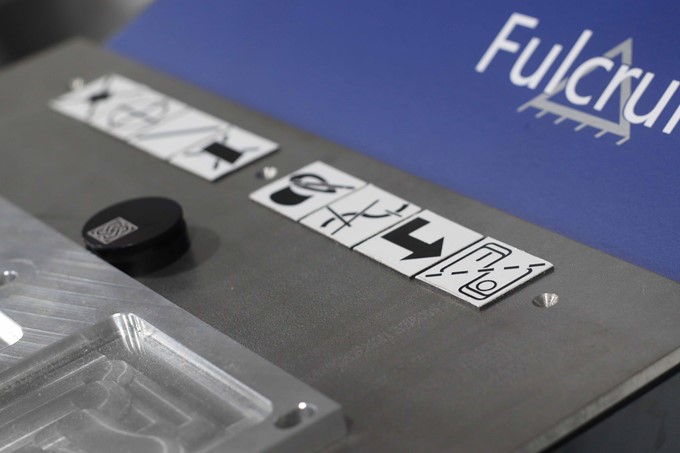

Magnetic soft buttons allow you to quickly change between features without using the mouse. They can be placed anywhere on the measuring surface. You can also program these soft buttons to perform any function in the Aberlink Mk4 software.


Effortless Fixturing

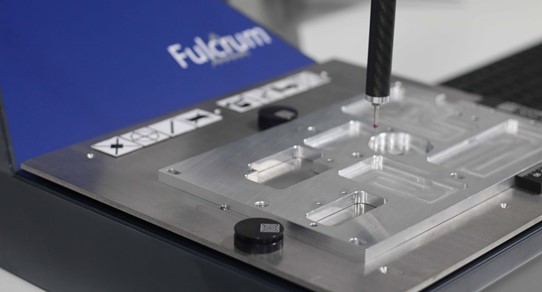

Magnetic fixture templates allow you to quickly fixture your part, making sure that all points are taken accurately.


The Complete Package

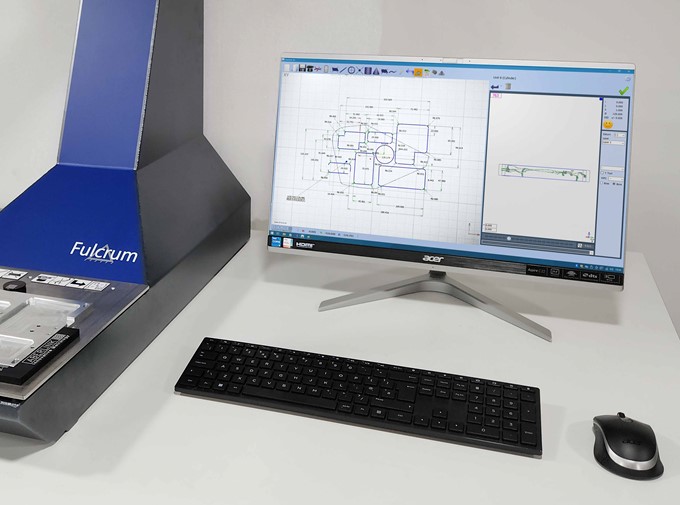

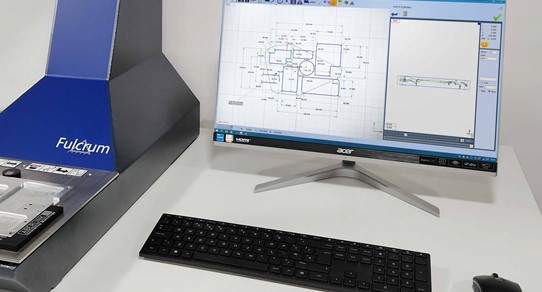

The Fulcrum is supplied with an all-in-one pc and our powerful Aberlink Mk4 software. Ready to measure out of the box, the Fulcrum can identify problems at the root of your production line saving time and money.


Unparalleled Measurement Freedom

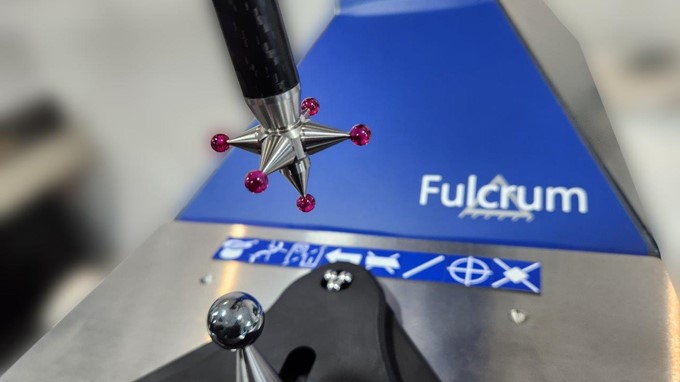

Available now, the Fulcrum can be supplied with our bespoke star styli kit. Star styli available from other leading manufacturers were not stiff enough and affected the CMMs accuracy. The bespoke styli ensures excellent metrology performance and accessibility to side-face features measured in the X-Z or Y-Z projection planes. The kit includes the calibration artefact, 3mm star stylus and a 6mm star stylus.


Advanced Fixturing

The Fulcrum can also be supplied with a tailor made fixture kit package, allowing quick and easy fixturing of more complex 3D or turned parts.



Fulcrum
fulcrum-buttons
fulcrum-fixturing
fulcrum-pc
fulcrum-star
fixture_demo
  • Compact and portable design
  • No compressed air needed
  • Robust manual CMM to place close to the production
  • Supplied with the user-friendly and innovative software Aberlink 3D
  • Aberlink 3D is easy to learn so 1 day of training is enough
  • Tactile scanning for profile and form
  • Accuracy within 5µ in the full measuring range
  • Aberlink 3D Basic Software
  • Windows based controller
  • Aberlinks Probe Kit
  • Magnetic Fixture Kit
  • 1 day training for 2-3 operators
  • 12 months of warranty
  • Cost free updates on the software
  • CAD Compare - compare profile and form against the CAD
  • Probe Kit Starstyli (Calibration reference, ø3mm & ø6mm styli)
  • Fulcrum Fixture Kit

Measurement Range

X 280mm
Y 280mm
Z 150mm

Machine Size

X 335mm
Y 830mm
Z 725mm

Motion

Manuell

Suitable for

Shop floor / Inspection room

Volumetric Accuracy

(5.0 + L/1000)µm

Scale Resolution

1.15μrad

Optimal Temp Range

18-22°C

Operative Temp Range

5 - 45°C

Compressed air

No

Aberlink Camera Support

No


*Minimum measuring range specified because the usable volume isn’t cubic.

**Maximum Permissible Error MPEE, according to an adapted ISO10360-2 2009 test to suit the Fulcrum, within the thermal limits defined for optimal temperature range.

***The machine should not be positioned where it will be subjected to rapid changes in temperature. Max rate of ambient temperature change should not be more than 1°C/hour.

Do you have any questions?

Contact the Nyli-team to find the solutions that fit your needs!

Product Videos

Related Products

Extol-370-new logo

Extol 370 and 520

The Extol CMM is a production-adapted coordinate measuring machine whose design is the first to use a Delta system.

  • Designed for Workshop Floor
  • Affordable
  • Compact design
Go to product

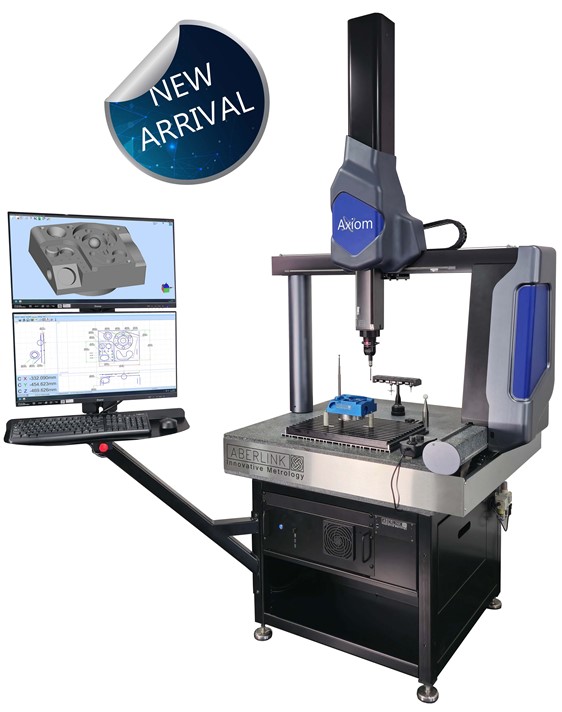

Axiom CMM
