Axiom CMM

Axiom CMM is an affordable CNC measuring machine that, with its axis drive and high-resolution scale, has improved the design, providing higher precision and faster measurement.

Axiom CMM, with its three different sizes to choose from and the innovative
Aberlink 3D software, has become a favourite for small and medium-sized enterprises.

Value for Money

A Complete Measuring Machine

Axiom CMM is an extremely cost-effective measuring machine for small to medium components and
is delivered with everything you need to get started with your quality assurance.

Quick Performance

Developed axis drive system gives Axiom CMM an increased speed by up to 20% compared to the standard belt drive.

Uncompromising Precision

Axiom CMM uses a scale with 0.1µm resolution on each axis, which, together with Aberlink's outstanding laser compensation method, makes the measuring machine extremely precise for its price class.




Axiom CMM
  • Solid granite table capable of high load
  • Aberlink's innovative and user-friendly software Aberlink 3D
  • Shortest learning curve of all similar systems - recommended 1-day training.
  • Axiom CMM is available in three different sizes to choose from
  • Suitable for use in a production environment
  • Industrial Joystick delivered as standard
  • Free probe change rack when upgrading the measuring head
  • Aberlink 3D Software
  • Windows Controller
  • Steel stand with fixed arm for monitor or optional controller cabinet
  • Renishaw TP8 manually indexed probe head with integrated stylus
  • Aberlink stylus kit
  • Aberlink reference Ø19mm sphere CMM calibration kit for stylus
  • 12 months warranty
  • Free software updates
  • Automation Interface Unit
  • CCD Camera System
  • Parallel Structured Backlighting (for camera)
  • Automatic Temperature Compensation
  • Fixture Kit
  • CAD Comparison - software module
  • CAD Programming - software module
  • Extra monitor, (Recommended if using CAD Module)
  • MH20i
  • RTP20
  • PH10T (w/TP20, TP200)
  • PH10M (w/SP25)
  • PH6M (w/SP25)

Axiom CMM can be equipped with all tactile-triggered stylus systems
and probe heads from Renishaw.

Measuring Range - Axiom CMM

X 640
Y 600, 900, 1200
Z 500

Machine Size - Axiom CMM

X 1040
Y 900, 1200, 1500
Z 2320

Control

CNC

Design

Gantry Measuring Machine

Suitable for

Production and Measurement Room Environment

Drive

Belt Driven

Volumetric Measurement Uncertainty

TP20
(2.1 + L/250)µm

TP200
(2.0 + L/250)µm

SP25M
(1.8 + L/250)µm

Resolution

0.1µm

Optimal Temperature

18-22°C

Operating Temperature

5 - 45°C

Surface Plate

Solid Granite

Load

500kg

Max Speed

850mm/s

Max Acceleration

850mm/sec²

Compressed Air Required

Yes

Air Consumption

100 l/min (3.53 cfm)

Specified Compressed Air

7 bar (100 psi)

Aberlink Camera Support

Yes

Do you have questions?

Contact the Nyli team to find the right product for you!

Axiom CMM Product Video

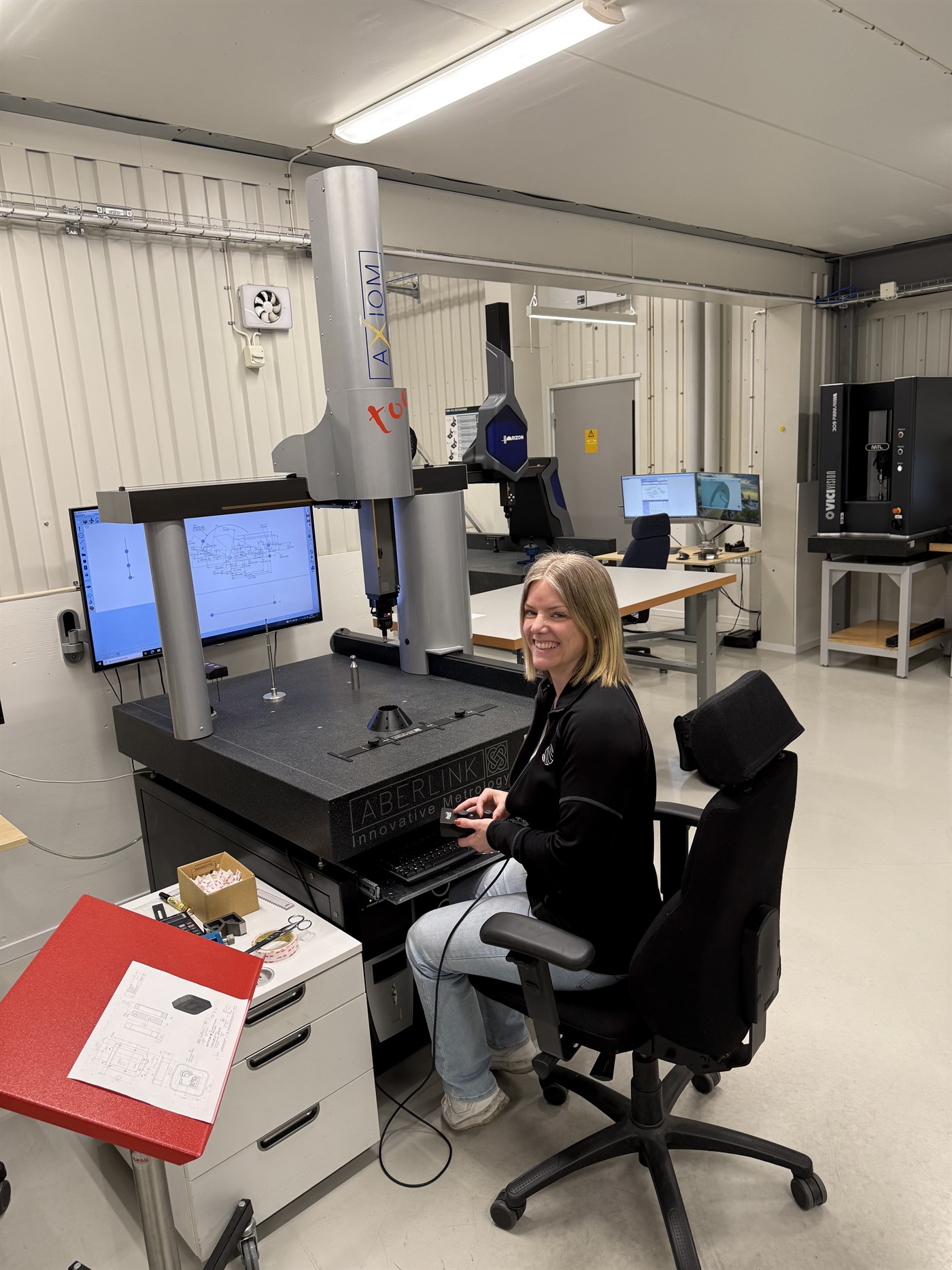

NPG:s Axiom Too

NPG Axiom Too

Nordic Polytech Group is the Nordic region's leading supplier of CNC-machined high-tech plastic components. With high technical competence, modern machinery, and a large dose of problem-solving joy and foresight, NPG delivers reliable quality to customers with high demands.

"Axiom Too has a much more user-friendly software compared to other options we have looked at, which means a significantly faster process for us to create measurement programs.

We are also pleased with NYLI as a supplier as they maintain a high availability of support."

Ronny Thell - Quality Manager NPG
