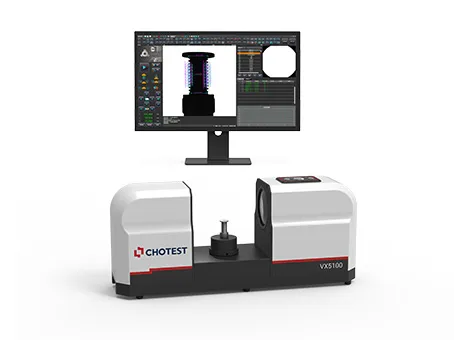

VX5100
Optical measuring machine from Chotest with user-friendly VisionX measuring software.
VX5100 is an optical measuring machine from Chotest with their in-house developed measuring software VisionX. VisionX offers an easy-to-use interface and up to 80 analysis tools.
Robust design and great value
When you choose an optical measuring machine from Chotest, you can be sure you are getting a product built to a high standard. They are very durable and withstand daily use year after year. Despite their high quality, they are also very competitively priced – you get a lot of measuring machine for your money. That makes Chotest an easy choice for optical measuring machines!
Easy operation with software from Chotest
All optical measuring machines from Chotest come with their in-house developed measuring software VisionX. The software is designed to give the user simple and fast analysis of their measurements. The program has clear visual elements that make analysis smooth. With up to 80 analysis tools, analysis is easy regardless of what you are measuring.
Optical measuring machine with measuring software that simplifies analysis
When you choose the VX5100, you get an optical measuring machine with Chotest's own measuring software VisionX. The program facilitates and improves the analysis of measurements.
Measurement data can be retrieved from CAD drawings. Even if the test object is not physically available, you can still quickly create measurement programmes. The system can automatically assign features and dimensions from the DXF drawing to the sample, including surface dimensions.
| Model | VX5100 | ||
| Image Senor | 5MP CMOS | ||
| Outside Monitor | 24" LCD (XGA:1920×1080) | ||
| Acceptance Lens | Double Telecentric Lens | ||
| Back Light | Telecentric transmission illumination | ||
| F.O.V. | Φ100mm | ||
| Repeatability | ±2um | ||
| Accuracy *1 | ±5um | ||
| Software | VisionX | ||
| Resolution | 0.1um | ||
| XY Obejct Table(Optional) | Retational Speed | 0.2 Revolution/s | |
| Diameter | Φ60mm | ||
| Capacity | 3kg | ||
| Size(LxWxH) | 736×200×325mm | ||
| Weight | 25kg | ||
| Input | AC100~240V,50/60Hz,1.3A,150W | ||
| Working Environment | Temp.10 °C~35 °C, Humidity 20~80%, Vibration<0.002g, Less than 15Hz | ||
| Remark: *1 In the focus position, the environment temperature is +20 °C ± 1.0 °C | |||
Geometric Tolerance Straightness, Roundness, Concentricity, Symmetry, Positional Tolerance, Parallelism, Perpendicularity, Profile Tolerance, etc.
CNC Mode Modify CNC program anytime, as well as adding or reducing features, OK or NG is concluded according to tolearance in CNC program
Automatic Only need to select the measuring features, after placing the workpiece, measuring results can be obtained quickly by one key
Coordinate System Can create coordinate system by Point-line, Line-line, and translate & rotate coordinate system, as well as create multi-coordinate system
Special tools Rounded corner, Contour, Thread, Slot, Perimeter, Pitch distance, Thickness, Chamfer, Spring, Gear, Sealing gasket, area, Pitch Angle, Boundary width
The barcode value read by the scanner can be saved as inspection information or used to search for programmes according to the operator's definition.
Accounts can be defined as administrator or operator, and the user rights for the operator account can be restricted as required.
The statistical analysis interface has the tabs [Statistical value], [Trend chart], [Histogram] and [Data list].
Automatic recording and sorting
Measurement results and key statistical information (e.g. mean value, σ, 3σ, 6σ, Ca, Cp, Cpk, etc.) are recorded and saved automatically. The operator can search for records based on different criteria.
Control the production process and improve product quality
The trend chart monitors deviations in production equipment and the production process by regularly tracking the trend of the measured values. For example, monotonic and periodic changes in the measured values.
The histogram reflects fluctuations and distribution of product quality and conveys information about process quality, which can be used to assess and predict product quality and the proportion of defective products.
Through quality diagnosis and analysis, SPC statistical methods can not only monitor product quality, but also reflect the trend of change in the manufacturing process and reduce waste caused by post-inspection, leading to better control of the production process and improved product quality.
Create measurement reports automatically with a single keystroke
1. Import and export measurements
2. Can be saved as PDF, CSV, Excel and text files
3. Support for user-defined PDF report templates
4. Support for user-defined Excel report templates
5. Quick export and printing of reports with a single keystroke
Take the next step towards better measurements
Contact us at Nyli for help!
