Med elektriskt zoomobjektiv samt ett dubbelt telecentriskt objektiv erbjuder Hybrid682 precis och effektiv mätning.
Tack vare kombinationen av två objektiv och avancerade algoritmer för bildanalys kan Hybrid682 leverera tillförlitlig mätning av detaljer i olika storlekar.

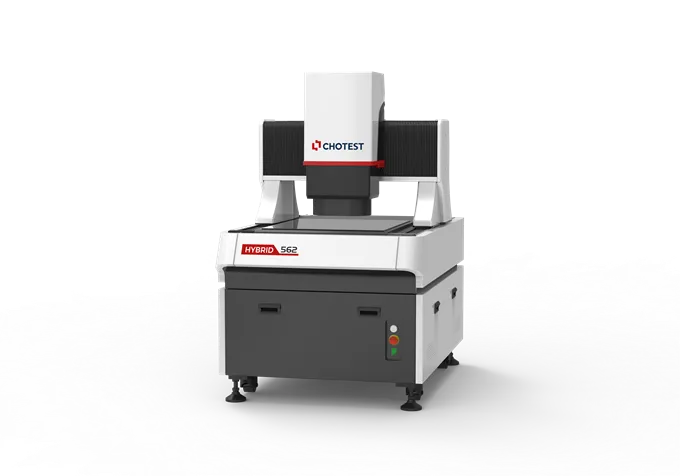

Hybrid-serien kan användas inom bland annat maskineri, elektronik, formar, formsprutning, hårdvara, gummi, lågspänningsapparater, magnetiska material, precisionsstansning, kontakter, anslutningar, terminaler, mobiltelefoner, hushållsapparater, kretskort, medicinsk utrustning, klockor, skärverktyg, mätning och testning samt andra områden.
| Model No. | Hybrid432 | Hybrid562 | Hybrid682 | |
| Travel range | X(mm) | 400 | 500 | 600 |
| Y(mm) | 300 | 600 | 800 | |
| Z(mm | 200 | 200 | 200 | |
| Structure Type | Column | Bridge | Bridge | |
| Base Material | Granite | |||
| Monitor | 24'' LCD(1920x1080) | |||
| Resolution of Glass Scale | 0.1μm | |||
| Guide rail | Precision linear guide rail | |||
| High-resolution electric zoom lens | Lens | 13.3X Motorized lens | ||
| Magnification*1 | Optical zoom：0.6~8.0X，Image Zoom：17~232X | |||
| Image sensor | HD colorful industrial camera | |||
| Single F.O.V. | 1mm×1mm~12mm×12mm | |||
| Measuring range(mm） | 360×310 | 410×600 | 610×800 | |
| Meas.accuracy (XY)*2 | (1.8+L/200)μm | (2.0+L/200)μm | (2.2+L/200)μm | |
| Meas.accuracy (Z)*3 | (2.8+L/200)μm | |||
| Bottom | Telecentric transmission Illumination (Green) | |||
| Ring | 6 rings and 8 segments light (white light) | |||
| Coaxial light | LED light | |||
| Double telecentric wide F.O.V optical lens | Lens Space. | Φ100mm double telecentric lens | ||
| Single F.O.V. | 90×90mm | |||
| Measuring range | 460x330mm (4 Angles R50) | 480x600mm (4 Angles R50) | 580x800mm (4 Angles R50) | |
| Accuracy of Single F.O.V.*4 | ±4μm | |||
| Stitching Accuracy*2 | (4+L/200)μm | (5+L/200)μm | (6+L/200)μm | |
| Back Light | Telecentric transmission Illumination (Green) | |||
| Ring Light | 4 segments illumination (White light, 75°), directional ring light (Green light, 0°) | |||
| Max Speed | XY | 500mm/s | ||
| Z | 100mm/s | |||
| Size | 860×1350×1670mm | 1050×1520×1700mm | 1150×1720×1700mm | |
| Weight | 650kg | 1000kg | 1300kg | |
| Loading capacity | 25kg | 50kg | ||
| Power supply | 2000W | 2500w | ||
| Motion control | Servo control system | |||
| Software | Vision X | |||
| Input | AC200~240V，50/60Hz | |||
| Working environment | Temperature 20°C±2°C, humidity 20~80%, vibration<0.002g, lower than 15HZ | |||
| Remark: *1 Image magnification is approximate and depends on monitor size and resolution. *2 In the focus position, the environment temperature is +20 °C ± 1.0 °C, and the load on the table is 5 kg or less; L is the moving range of the table in mm. *3 It is mechanical accurcy, and actual accuracy depends on object surface where lens focuses. *4 In the focus position, the environment temperature is +20 °C ± 1.0 °C. | ||||
Kontakta oss på Nyli för professionell rådgivning så hittar vi rätt produkt tillsammans!
